DM11C
DM11C
8-bit Constant Current LED Driver
with Error Detection
General Description

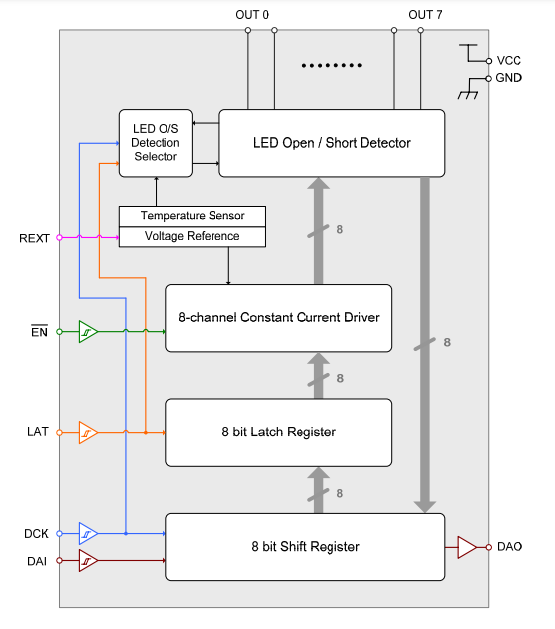

DM11C is a constant-current sink driver specifically designed for LED display applications. The device incorporates shift registers, data latches, and constant current circuitry on the silicon CMOS chip. The maximum output current value of all 8 channels is adjustable by a single external resistor. Its built-in open/short detection circuits help users detect LED failures. System retrieve the error messages to indicate which channel has failure by serial output data. The thermal shutdown function provides the over temperature protection.
Features
Constant-current outputs: 5mA to 120mA adjustable by one external resistor
Maximum output voltage: 17V
Maximum clock frequency: 25MHz
Built-in real-time LED open/short detection z Fast detecting response: 0.1us (min.)
Over temperature protection: thermal shutdown (junction temperature > 180°C)

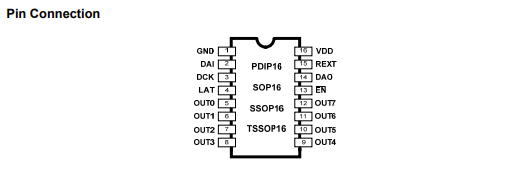

Package and pin assignment compatible to conventional LED drivers (ST2221A, DM114/5)
Power supply voltage: 3.3V to 5.5V
