8-Bit CONSTANT CURRENT LED DRIVERS

with 3.3v ~ 5v Supply Voltage

General Description

      The DM115B is the constant current driver specifically designed for LED display applications. The value of constant current can be varied using an external resistor. The devices include an 8-bit shift register, latches, and constant current drivers on a single Silicon CMOS chip.

Features

• Maximum Output Voltage:   17V

• Maximum Clock Frequency:  25MHz (Cascade Operation)

• Power Supply Voltage:          3.3V to 5.0V

• CMOS Compatible Input

• Package:                             PDIP16, SOP16, SSOP16

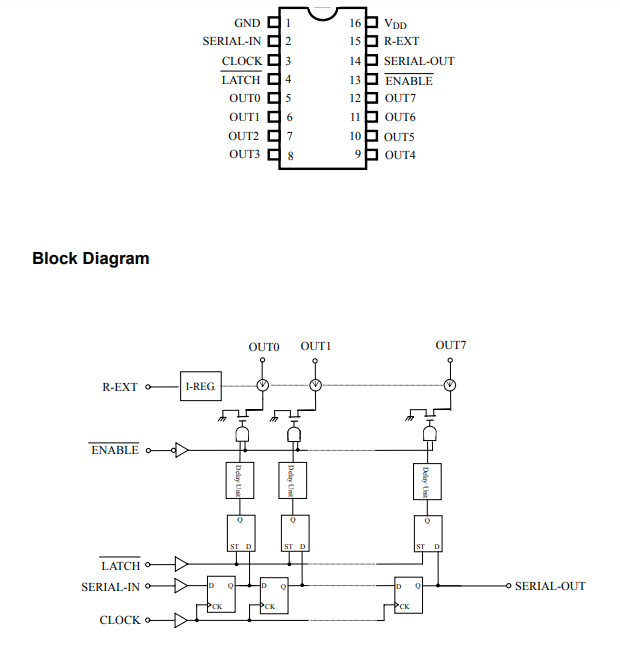

• Package and Pin Layout: Pin layout and functionality are similar to those of the ST2221A.

                                          (Each characteristic value is different.)

• Constant Current Matching: (Ta = 25°C、VDD = 5.0V)

                                                Chip-to-Chip: ± 10.0%

                                                 Bit-to-Bit: ± 4.0% @ IOUT = 20 ~ 60mA ± 6.0%

                                                                              @ IOUT = 5 ~ 20m
